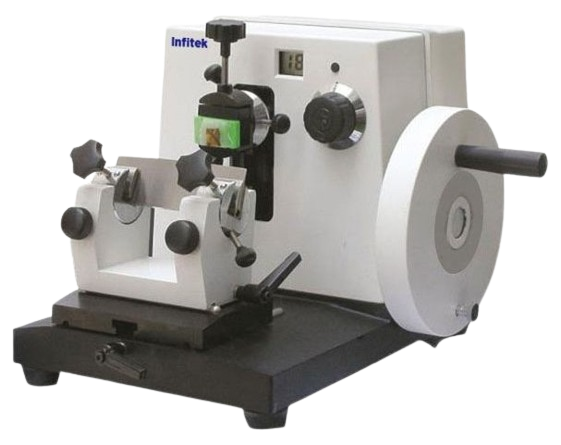

Microtomo Rotatorio

Price: Request Pricing

Request a Quote

Product characteristic:

1. Maximum Specimen Size: 50x60mm(optional clamp)
2. Section Thickness Setting Range: 1 - 35μm
3. Total Horizontal Specimen Feed: 30mm
4. Vertical Specimen Stroke: 55mm
5. For paraffin section, Conventional slices
6. Equipped with safety alarm system

Application:
Used for plants, animals, biology, internal organs, bones in Research institutes, scientific research units


Technical Parameters

Ref. Code P93914
Section thickness range 1~25μm continuous slicing, >25μm arbitrarily adjust the slice thickness
1~40μm continuous slice,>40μm arbitrarily adjust the slice thickness (optional)
Trimming Thickness Setting Range 0-500μm
Minimum Setting of Sectioning Thickness 1μm
Specimen Orientation XY - 8°
Total Horizontal Specimen Feed 30mm
Vertical Specimen Stroke 55mm
Movement Range of the Base of Blade Holder Base 0-50mm (front and back)
Movement Range of the Base of Blade Holder Base 0-20mm(left and right)
Maximum Specimen Size 50x60mm(optional clamp)
Precision Error ±5%
Dimensions 340x335x270mm(WxDxH)
