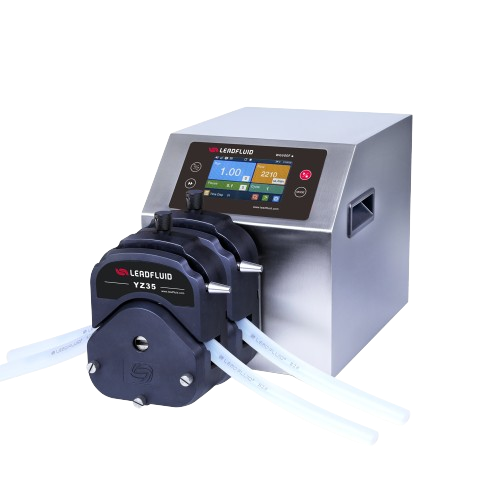

WG600F Industrial Intelligent Dispensing Peristaltic Pump
Flow rate: 0.0013–13.2 L/min. Up to 2 channels.
Operating Modes
- Clear 4.3-inch high-definition IPS capacitive LCD.
- Touchscreen and operating keys for convenient control.
- External control accepts 5–24 V.
- Start/stop, reversible direction, full-speed mode, suck-back and programmed start/stop.
- Stable LF-Touch-OS software with intuitive operation, customization and upgrade options.
- Operating modes: flow rate, timed dispensing, volume dispensing and programmed cycle dispensing.
- Accurate flow display and control; microstepping algorithm supports dispensing accuracy across configurations.
- User-friendly flow-calibration wizard.
- Graphical selection of pump head and tubing.
- Flow mode supports delayed start and timed stop.
- Reverse suck-back function helps prevent liquid dripping.
- Five stored volume- and time-dispensing parameter sets.
- Program mode supports 30 quantitative parameter sets for complex control sequences.
- Intelligent temperature-control function adjusts operation according to ambient conditions.
- External speed, start/stop, direction and dispensing controls with electrically isolated signals.
- RS485/MODBUS communication and DB15 external-control interface.
- Multiple configurable parameters for custom OEM applications.
- Protective conformal coating on the circuit board helps resist dust and moisture.
- High interference immunity and wide input-voltage range for demanding supply conditions.
- Stainless-steel housing is easy to clean and resists exposure to various organic solvents.
| Operating Modes | Flow Rate, dispensación per Time, dispensación per Volume, dispensación programada (cycle) |
|---|
Shared specifications and options
Compatible Pump Heads, Tubing and Flow Rate Parameters
| Pump Head | YZ35 |
|---|---|
| Ch | 1, 2 |
| Tubing | 73# 82# |
| Single-channel flow rate (L/min) | 0.0013~13.2 |
Specifications
| Parameter | Value |
|---|---|
| Flow Rate Range | 0.0013~13.2L/min |
| Speed Range | 0.1~600.0rpm |
| Speed Resolution | 0.1rpm |
| Volume of dispensación | 0.001μL~999.0L (Se recomienda a llenado minimum of 100mL) |
| Dispensing Time | 1～999, "0" cycle infinito |
| Dispensing Interval | 0.1～999.9 S/Min/H, unit of Time adjustable |
| accuracy of Speed | <±0.2% |
| input of signal of control externa | (1) Start/stop: dry contact, external input level (5~24 V). (2) Forward/reverse: dry contact, external input level (5~24 V). (3) Adjustable analog speed control: 0~5 V, 0~10 V or 4~20 mA. |
| output of signal of control externa | (1) Start/stop: logic-level signal (following input voltage). (2) Forward/reverse: logic-level signal (following input voltage). (3) Speed-status analog output: 0~5 V. |
| Communication Interface | RS485, MODBUS protocol supported, external-control interface DB15 |
| Power Supply | AC100-240V 50/60Hz |
| Power Consumption | <400W |
| Operating Environment | temperature 0 ～ 40℃, relative humidity <80% |
| IP Protection Rating | IP31 |
| Dimensions (LxWxH) | 333x233x269mm |
| Weight | 10.2kg |
Compatible Pump Heads, Tubing and Flow Rate Parameters
| Parameter | Value |
|---|---|
| Pump Head | YZ35 |
| Ch | 1, 2 |
| Tubing | 73# 82# |
| Single-channel flow rate (L/min) | 0.0013~13.2 |
