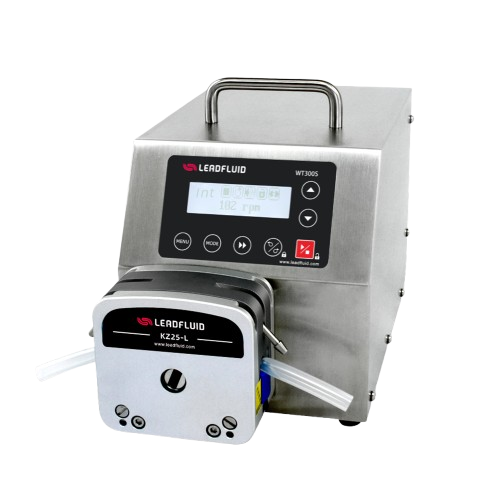

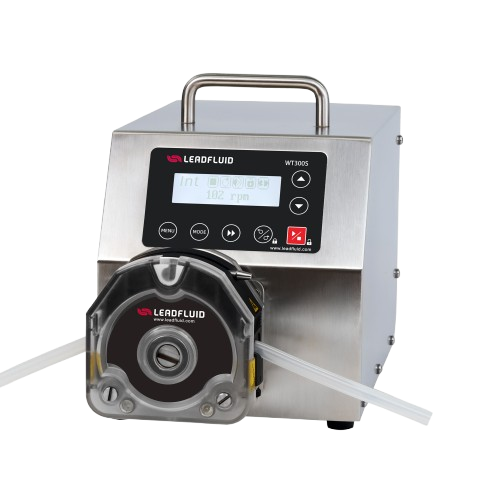

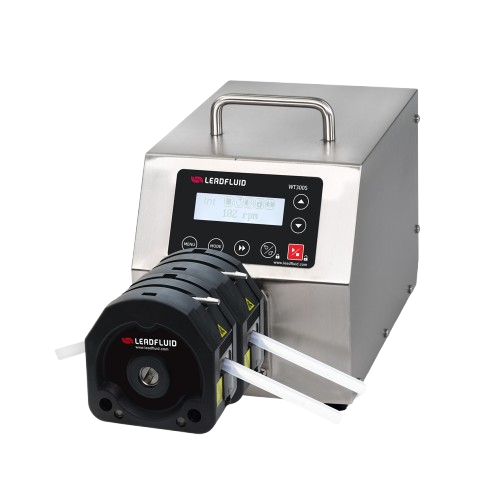

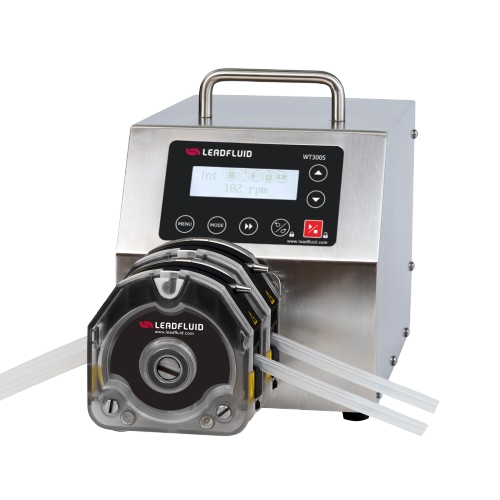

WT300S (New) High-Torque Variable-Speed Peristaltic Pump

1. LF-LCD-OS software with high-definition LCD, Chinese/English interface, easy parameter settings and intuitive operating status.
2. High-quality, high-torque brushless servo motor for precise speed, wide operating range, stable running and accurate flow delivery.
3. Durable industrial membrane keypad.
4. Universal LF-EasyChange high-torque design compatible with multiple KZ25, KZ25-L and GN10 pump heads.
5. Start/stop, reversible direction, full-speed operation, speed adjustment and power-off state memory.
6. Configurable run time, interval time and cycle count for timed filling and flow testing.
7. Deceleration and reverse suck-back functions help prevent drips at shutdown.
8. Key lock helps prevent unintended operation.
9. Optional Lead Fluid app control for remote start/stop, speed and timed operation, with shutdown alarms and tubing-replacement reminders.
10. Easy-to-clean 304 stainless-steel housing resistant to various organic solvents.
11. Internal dual-insulation structure protects the circuit system from dust and moisture.
12. High interference immunity and wide supply-voltage range.
13. RS485 communication with MODBUS protocol for device integration.
14. Optically isolated external start/stop, forward/reverse and speed controls.
15. Operating-status signal outputs for start/stop, direction and current speed.
16. Optional external thermal printer for real-time operating parameters.
17. Supports accessories such as a foot switch, pulsation damper and leak detector.

Shared specifications and options

Specifications

Compatible Pump Heads, Tubing and Flow Rate Parameters
