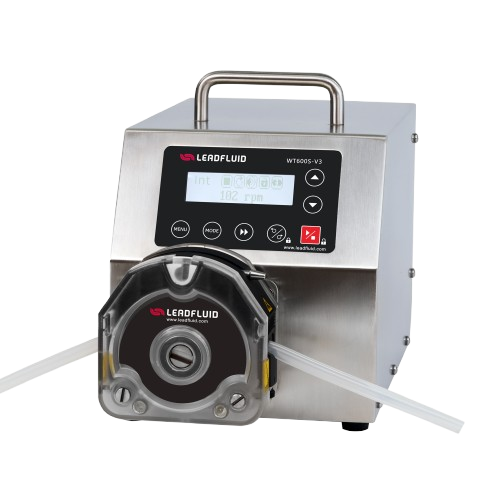

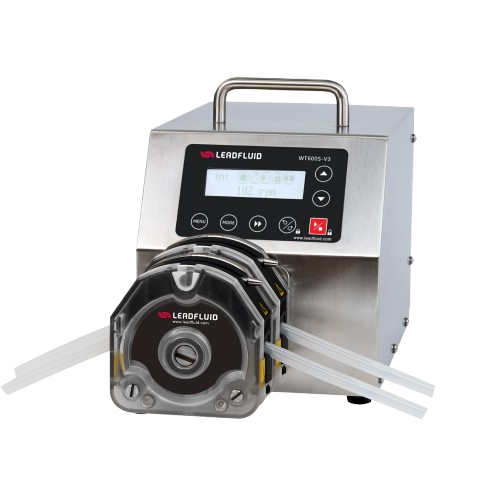

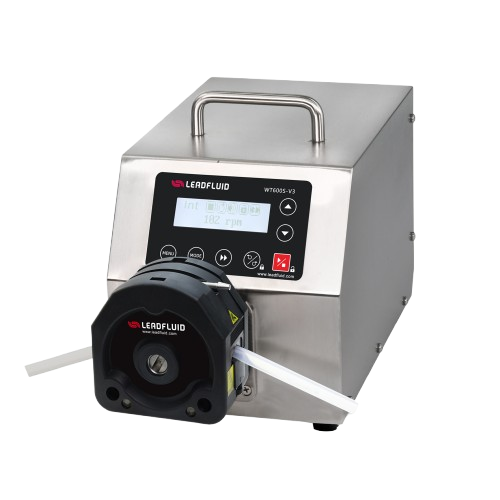

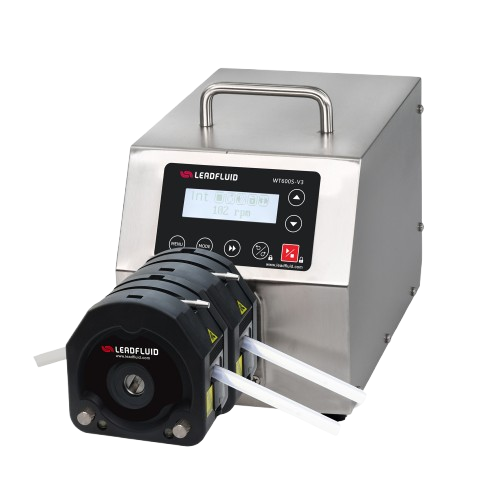

WT600S (New) High-Torque Variable-Speed Peristaltic Pump

1. LF-LCD-OS software with high-definition LCD, Chinese/English interface, simple parameter settings and intuitive status display.
2. High-quality, high-torque brushless servo motor for precise speed, wide operating range, stable operation and accurate flow delivery.
3. Durable industrial membrane keypad.
4. Universal LF-EasyChange high-torque design supporting KZ25, KZ25-L and GN10 pump heads.
5. Start/stop, reversible direction, full-speed operation, speed adjustment and power-off state memory.
6. Configurable run time, interval time and cycle count for timing, liquid filling and flow testing.
7. Deceleration and reverse suck-back functions prevent dripping at shutdown.
8. Key lock prevents operating errors.
9. Optional Lead Fluid app for remote start/stop, speed and timed operation, with shutdown alarms and tubing replacement reminders.
10. Easy-to-clean 304 stainless-steel housing resistant to organic solvents.
11. Internal dual-cover structure protects circuits from dust and moisture.
12. High interference immunity and wide supply-voltage range.
13. RS485/MODBUS interface for integration with other devices.
14. Optically isolated external start/stop, forward/reverse and speed controls.
15. Status outputs for start/stop, direction and actual speed.
16. Optional external thermal printer for real-time operating parameters.
17. Supports foot switch, pulsation damper, leak detector and related accessories.

Shared specifications and options

Compatible Pump Heads, Tubing and Flow Rate Parameters

Specifications
