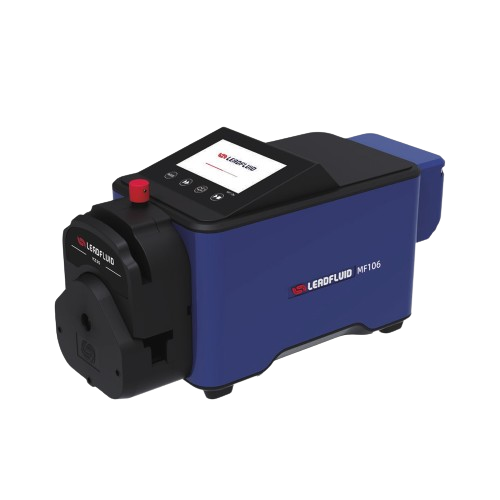

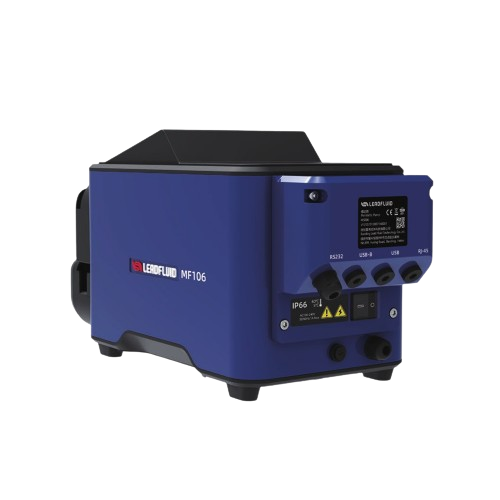

MF106 High-Protection Peristaltic Pump
Flow rate: 0.005–7920 mL/min. Up to 4 channels.
Precision cast-aluminum housing: One-piece powder-coated aluminum enclosure with a streamlined appearance, excellent heat dissipation and corrosion resistance. Integrated structure: The pump and controller are combined for easy installation. Seven-inch display: Large, wide-viewing-angle LCD touchscreen simplifies operation. Servo drive: High accuracy, high torque and low noise. Five operating modes: Flow-rate control, volume dispensing, timed dispensing, programming and external control. Intelligent connectivity: Supports RS485 communication and the Modbus protocol. Three-level user permissions help prevent unauthorized parameter changes. The source describes selected high-quality components. Note: The stated flow parameters were measured using silicone tubing to transfer pure water under normal temperature and pressure; actual performance depends on pressure, fluid properties and other application conditions. Values are for reference only.
Shared specifications and options
Specifications
| Parameter | Value |
|---|---|
| Flow Rate Range | 0.006-7800 mL/min |
| Speed Range | 0.1-360 rpm |
| Speed Resolution | 0.1 rpm, accuracy 0.2% |
| accuracy of the Speed | <0.5% |
| Operating Mode | Keypad start/stop and direction control, full-speed mode and power-off state memory. Foot-switch control and electrically isolated external start/stop and direction control; selectable input levels 5 V/12 V and optional 24 V. Optional speed adjustment via 0–5 V, 0–10 V or 4–20 mA. Flow, volume-dispensing and timed-dispensing modes. |
| Adjustment Method | operation táctil in Display |
| Display Method | Display táctil of color of 5 inches |
| Rotation Direction | CW/CCW |
| input of signal of External Control | (1) Start/stop: dry contact, external input level (5~24 V). (2) Direction: dry contact, external input level (5~24 V). (3) Speed. |
| Control Range | analógico 0~5V, 0~10V, 4~20mA adjustable |
| output of signal of External Control | (1) Start/stop: logic-level signal (according to input voltage). (2) Direction: logic-level signal (according to input voltage). |
| Communication Interface | RS485 communication interface; Modbus protocol supported |
| Power Supply | AC 100-240V 50-60 Hz |
| Power Consumption | <180W |
| Operating Environment | Operating Temperature 0-40℃, humidity of work 80% |
| Housing Material | Aluminio |
| IP Protection Rating | IP66/IP67 |
| Dimensions (LxWxH) | 363x180x230 mm |
| Motor Weight | 11 kg |
Compatible Pump Heads, Tubing and Flow Rate Parameters
| YT25 | 1,2 | 114#116#15#24#35#36# | 0.024～1800 |
|---|---|---|---|
| KZ25 | 1 | 15#24#35#36# | 0.31～3960 |
| DMD25 | 1 | 114#119#116#15#24#35#36# | 0.058～4320 |
| YZ35 | 1 | 73#82# | 1.3～7920 |
